INDICATOR AND CONTROLLER
LAUMAS – W100
GENERAL FEATURES
Weight Indicator in DIN case, dimensions 48 x 96 x 130 mm. IP54 front panel protection. Four-key membrane keyboard. Eight indicator led. Real time clock/calendar.
- Panel mounting
- Six-digit red LED display, 14 mm height
- RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- OIML R61 approved – WELMEC Guide 8.8:2011 (M.I.D.)
- A/D converter 24bit (16000000 points) 4.8 kHz
- Display range 999999
Some optional features:
16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
Click below for Data Sheet

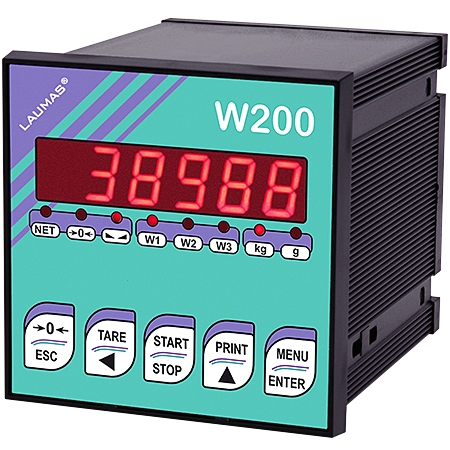

LAUMAS -W200
GENERAL FEATURES
Weight Indicator in DIN case, dimensions 96 x 96 x 130 mm. IP54 front panel protection. Five-key membrane keyboard. Eight indicator led. Real time clock/calendar.
- Possible installations: panel
- Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
- Six-digit red LED display, 14 mm height
- RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- OIML R61 approved – WELMEC Guide 8.8:2011 (M.I.D.)
- Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.
- A/D converter 24bit (16000000 points) 4.8 kHz
- Display range 999999
Some optional features:
16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
Data storage on USB pen drive
Box versions: IP67, IP67 ATEX II 3GD, IP64
ADPEW200: ATEX II 2(1) GD explosion proof box version
Click below for W200 data sheet

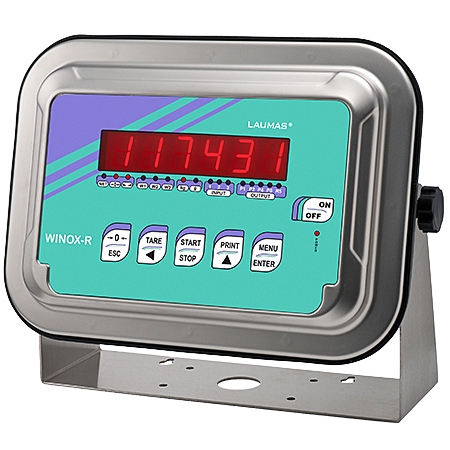

LAUMAS -WINOX-R
STAINLESS STEEL WEIGHT INDICATOR (for weighing and batching)
GENERAL FEATURES
AISI 304 stainless steel Weight Indicator, dimensions 206 x 286 x 108 mm, stainless steel adjustable bracket included (overall dimensions: 206 x 290 x 187 mm). IP68 protection rating (IP69K optional). Six-key membrane keyboard. 16 indicator led. Real time clock/calendar. Different versions for various types of electrical connections: cable glands, D-SUB connectors, removable terminal board/connectors.
- Possible installations: wall, panel, column, desk
- Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
- Six-digit red LED display, 20 mm height
- RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- OIML R61 approved – WELMEC Guide 8.8:2011 (M.I.D.)
- Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.
- A/D converter 24bit (16000000 points) 4.8 kHz
- Display range 999999
Some optional features:
- IP69K protection rating
- Data storage on USB pen drive
- ATEX II 3GD version
- 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
Click below for W200 data sheet
LAUMAS -ADPE W200
W200 SERIES EXPLOSION PROO WEIGHT INDICATOR
GENERAL FEATURES
The system is composed of:
- Weight indicator series W200
- Passive fail-safe Zener barriers, ATEX II (1) GD approved
- Explosion proof box, ATEX II 2(1) GD approved, provided with heat-resistant transparent tempered glass window and 5 external buttons which performs the same functions as W200 keyboard
Click below for W200 data sheet

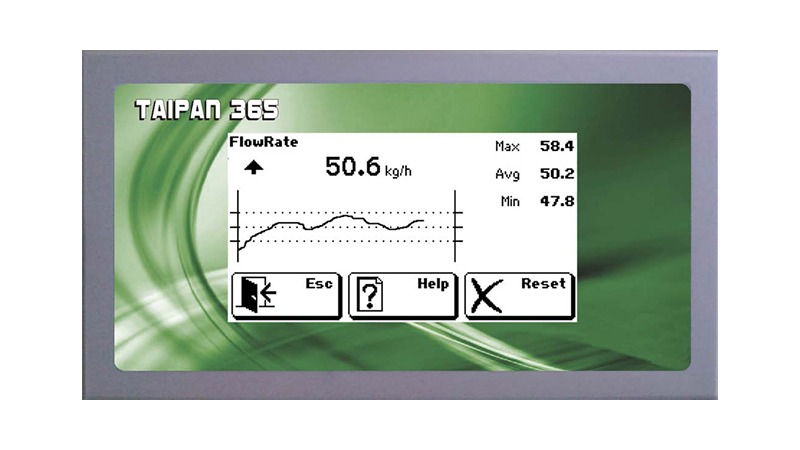

TAIPAN365
LOSS-IN-WEIGHT WEIGHING SYSTEM
GENERAL FEATURES
Loss-in-weight regulator, dimensions 196x105x100 mm. IP65 front panel protection rating.
A/D Converter 24 bit
Panel mounting
Touch screen LCD display
RS232, RS422 and RS485 serial ports
6 logic inputs, 6 relay outputs
