GENERAL FEATURES

Weight transmitter/indicator with six-digit red LED display (8 mm height). Space saving compact design. Four buttons for the system calibration. Six indicator led. Dimensions: 26 x 115 x 120 mm.

4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).

Display range 999999

16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V

RS485 port (Modbus RTU/Laumas ASCII protocol)

2 logic inputs, 3 relay outputs

OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

Mounting on Omega/DIN rail for front/back panel

4 channels A/D converter 24bit (16000000 points) 4.8 kHz

GENERAL FEATURES

Weight transmitter/indicator with six-digit red LED display (8 mm height). Space saving compact design. Four buttons for the system calibration. Six indicator led. Dimensions: 26 x 115 x 120 mm.

4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).

Display range 999999

RS485 port (Modbus RTU/Laumas ASCII protocol)

2 logic inputs, 3 relay outputs

OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

Mounting on Omega/DIN rail for front/back panel

4 channels A/D converter 24bit (16000000 points) 4.8 kHz

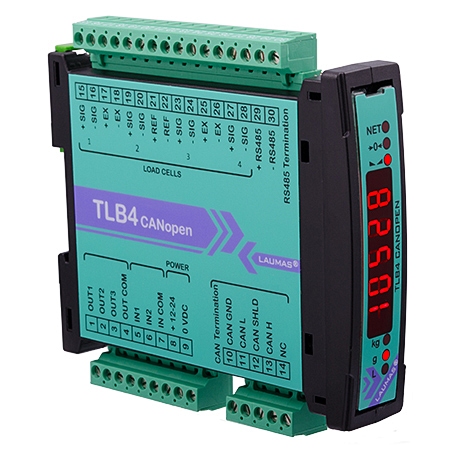

GENERAL FEATURES

Weight transmitter/indicator with six-digit red LED display (8 mm height). Space saving compact design. Four buttons for the system calibration. Six indicator led. Dimensions: 26 x 115 x 120 mm.

4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).

Display range 999999

CANopen port

RS485 port (Modbus RTU/Laumas ASCII protocol)

2 logic inputs, 3 relay outputs

OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

Mounting on Omega/DIN rail for front/back panel

4 channels A/D converter 24bit (16000000 points) 4.8 kHz

GENERAL FEATURES

Weight transmitter/indicator with six-digit red LED display (8 mm height). Space saving compact design. Four buttons for the system calibration. Six indicator led. Dimensions: 26 x 115 x 120 mm.

4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).

Display range 999999

DeviceNet port

RS485 port (Modbus RTU/Laumas ASCII protocol)

2 logic inputs, 3 relay outputs

OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

Mounting on Omega/DIN rail for front/back panel

4 channels A/D converter 24bit (16000000 points) 4.8 kHz

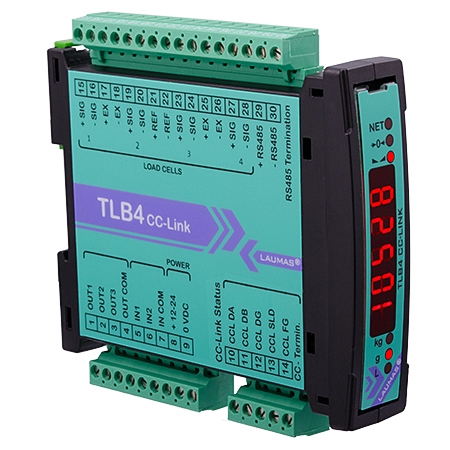

GENERAL FEATURES

Weight transmitter/indicator with six-digit red LED display (8 mm height). Space saving compact design. Four buttons for the system calibration. Six indicator led. Dimensions: 26 x 115 x 120 mm.

4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).

Display range 999999

CC-Link port

RS485 port (Modbus RTU/Laumas ASCII protocol)

2 logic inputs, 3 relay outputs

OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

Mounting on Omega/DIN rail for front/back panel

4 channels A/D converter 24bit (16000000 points) 4.8 kHz

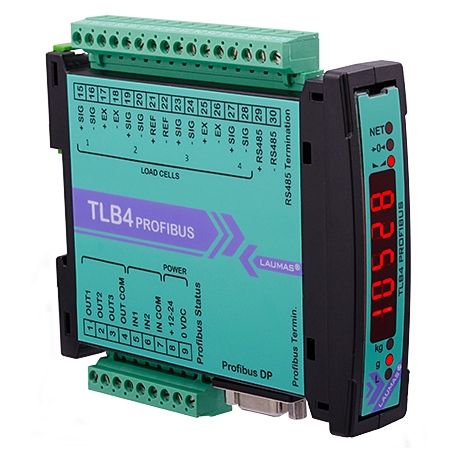

GENERAL FEATURES

Weight transmitter/indicator with six-digit red LED display (8 mm height). Space saving compact design. Four buttons for the system calibration. Six indicator led. Dimensions: 26 x 115 x 120 mm.

4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).

Display range 999999

PROFIBUS DP port

RS485 port (Modbus RTU/Laumas ASCII protocol)

2 logic inputs, 3 relay outputs

OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

Mounting on Omega/DIN rail for back panel

4 channels A/D converter 24bit (16000000 points) 4.8 kHz

GENERAL FEATURES

Weight transmitter/indicator with six-digit red LED display (8 mm height). Space saving compact design. Four buttons for the system calibration. Six indicator led. Dimensions: 26 x 115 x 120 mm.

4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).

Display range 999999

Two PROFINET IO ports

RS485 port (Modbus RTU/Laumas ASCII protocol)

2 logic inputs, 3 relay outputs

OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

Mounting on Omega/DIN rail for front/back panel

4 channels A/D converter 24bit (16000000 points) 4.8 kHz

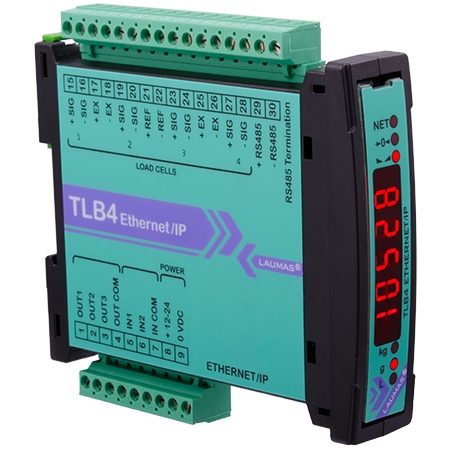

GENERAL FEATURES

Weight transmitter/indicator with six-digit red LED display (8 mm height). Space saving compact design. Four buttons for the system calibration. Six indicator led. Dimensions: 26 x 115 x 120 mm.

4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).

• Two Ethernet /IP ports
• RS485 port (Modbus RTU/Laumas ASCII protocol)
• 2 logic inputs, 3 relay outputs
• OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
• Mounting on Omega/DIN rail for front/back panel
• 4 channels A/D converter 24bit (16000000 points) 4.8 kHz
• Display range 999999

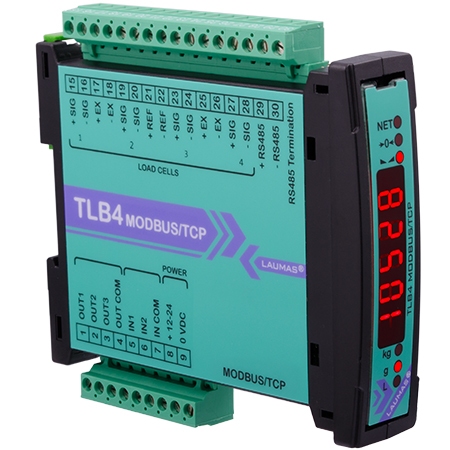

GENERAL FEATURES

Weight transmitter/indicator with six-digit red LED display (8 mm height).  Space saving compact design. Four buttons for the system calibration. Six indicator led. Dimensions: 26 x 115 x 120 mm.

4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).

Display range

Modbus/TCP port

RS485 port (Modbus RTU/Laumas ASCII protocol)

2 logic inputs, 3 relay outputs

OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

Back panel mounting on Omega/DIN rail

Mounting on Omega/DIN rail for front/back panel

4 channels A/D converter 24bit (16000000 points) 4.8 kHz

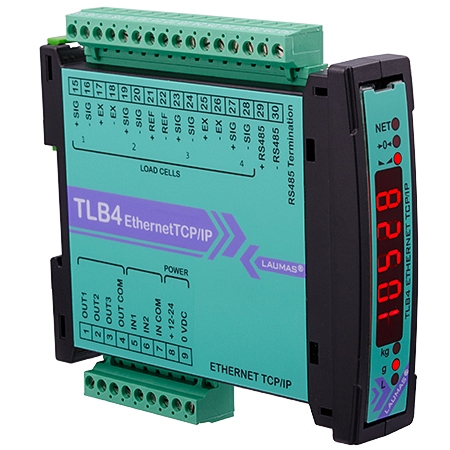

GENERAL FEATURES

Weight transmitter/indicator with six-digit red LED display (8 mm height). Space saving compact design. Four buttons for the system calibration. Six indicator led. Dimensions: 26 x 115 x 120 mm.

4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).

Display range 999999

Ethernet TCP/IP port for remote management (connectable to your PC, smartphone, tablet, etc. via web)

RS485 port (Modbus RTU/Laumas ASCII protocol)

2 logic inputs, 3 relay outputs

OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

Mounting on Omega/DIN rail for front/back panel

4 channels A/D converter 24bit (16000000 points) 4.8 kHz

GENERAL FEATURES

Weight transmitter/indicator with six-digit red LED display (8 mm height). Space saving compact design. Four buttons for the system calibration. Six indicator led. Dimensions: 26 x 115 x 120 mm.

4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).

Display range 999999

Two EtherCAT ports

RS485 port (Modbus RTU/Laumas ASCII protocol)

2 logic inputs, 3 relay outputs

OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

Mounting on Omega/DIN rail for front/back panel

4 channels A/D converter 24bit (16000000 points) 4.8 kHz

GENERAL FEATURES

Weight transmitter/indicator with six-digit red LED display (8 mm height). Space saving compact design. Four buttons for the system calibration. Six indicator led. Dimensions: 26 x 115 x 120 mm.

4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).

Display range 999999

Two POWERLINK ports

RS485 port (Modbus RTU/Laumas ASCII protocol)

2 logic inputs, 3 relay outputs

OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

Mounting on Omega/DIN rail for front/back panel

4 channels A/D converter 24bit (16000000 points) 4.8 kHz

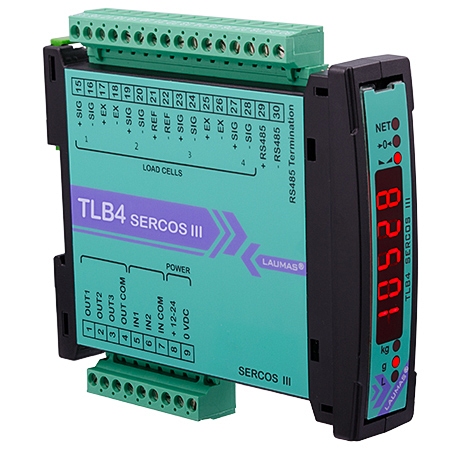

GENERAL FEATURES

Weight transmitter/indicator with six-digit red LED display (8 mm height). Space saving compact design. Four buttons for the system calibration. Six indicator led. Dimensions: 26 x 115 x 120 mm.

4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).

Display range 999999

Two SERCOS III ports

RS485 port (Modbus RTU/Laumas ASCII protocol)

2 logic inputs, 3 relay outputs

OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

Mounting on Omega/DIN rail for front/back panel

4 channels A/D converter 24bit (16000000 points) 4.8 kHz

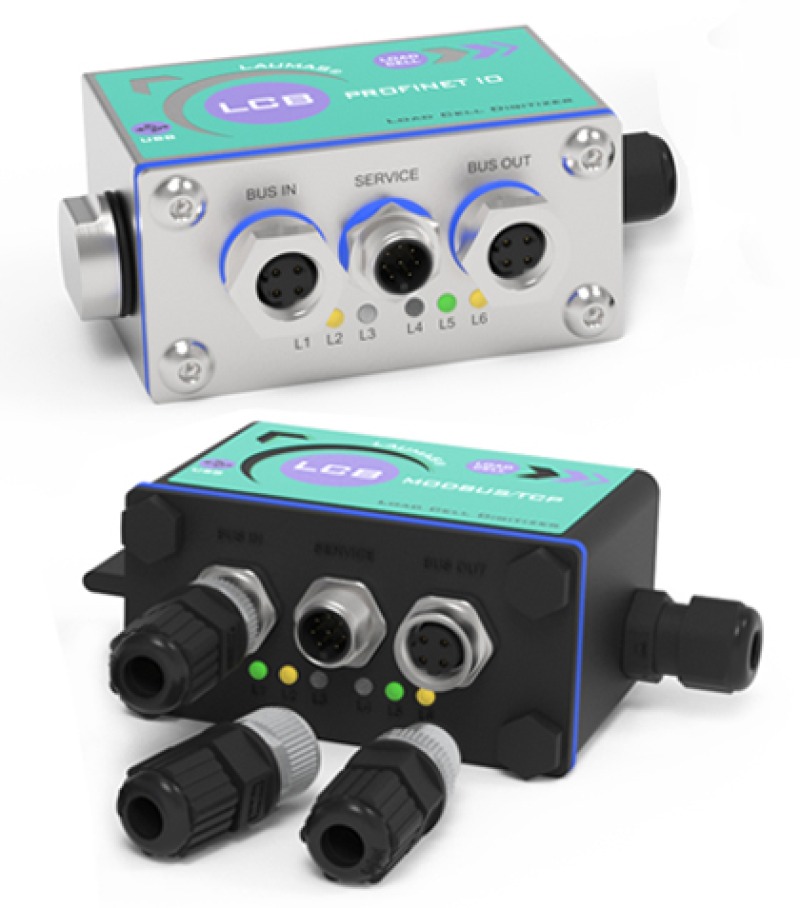

GENERAL FEATURES

Weight transmitter/digitizer for load cells that transforms an analog load cell (with mV/V output) into a digital load cell and can also be used with existing strain gauge load cells or sensors.
Designed for mounting/wiring integrally with the load cell body, it can be connected via fieldbus to PLCs from leading international brands.

IP67 junction box made of AISI 304 stainless steel or PA66 nylon reinforced with glass fiber.

3 M12 IP67 connectors.
Dimensions: 90x40x107 mm including connectors.
6 LEDs for communication interface indication.

• Optional fieldbuses: PROFINET IO, Ethernet/IP, Ethernet TCP/IP, Modbus TCP, PROFIBUS DP, EtherCAT, POWERLINK, CANopen, CC-Link, CC-Link IE Field Basic, SERCOS III, IO-LINK.
• Micro USB port
• 16-bit analog output: 0/4-20 mA; 0-5/10 V (optional)
• RS485 port (optional)
• Direct connection between RS485 and RS232 without converter
• 2 logic inputs, 3 relay outputs
• Single loading batchings, max 99 formulas
• Mounting: wired or integral to the load cell body via standard ¼ GAS fitting
• Suitable for wall mounting

The weight calculation rate reaches up to 500 values ​​per second, and the data update rate on the fieldbus can also reach a maximum speed of 500 updates per second when using PROFINET, EtherNet/IP, and EtherCAT buses.

The instrument can be configured and managed using the free Instrument Manager PC software, included in the supply.
